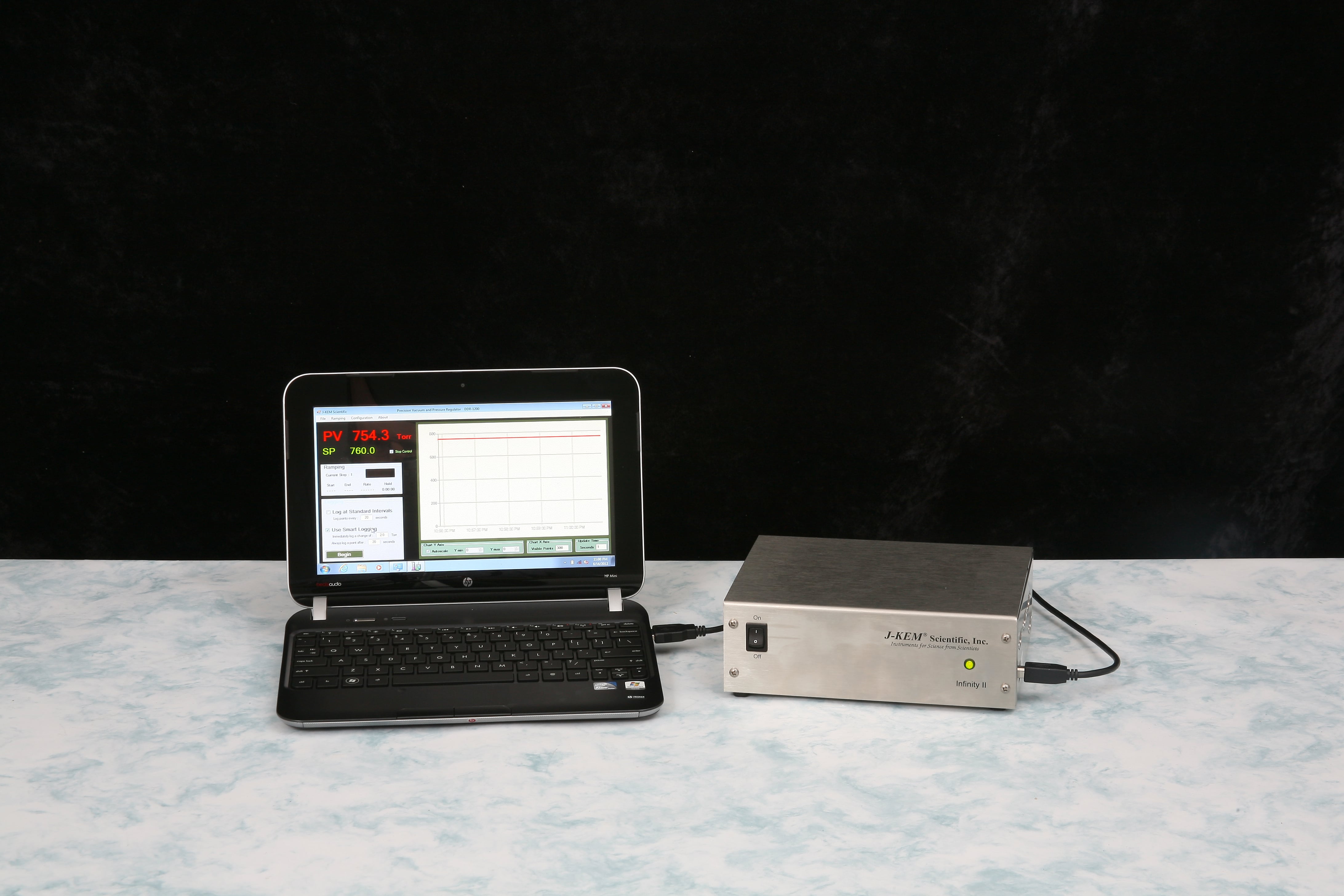

Jkem Dual Range Vacuum Pressure Regulator Ddr1200

Dual Range Vacuum & Pressure Regulator

$4,392.55 – $6,021.64

Regulation of both vacuum and positive pressures. Built with a dual range pressure transducer capable of accurately measuring pressures from full vacuum to the pressure limit of the transducer selected. The maximum pressure of the controller is user selectable. Contains an absolute pressure transducer.

Dual Range Vacuum & Pressure Regulator

Select the maximum pressure range.

Select two valves, one for vacuum and one for pressure regulation.

The optimal PSV value depends on the exact conditions of the procedure. The table below applies to closed systems. For applications with a continuous purge of gas, call J-KEM for assistance.

Cat# System Values Valve CV Price ($)
PSV-2 1ml to 2L 0.033 504.05
PSV-3 25ml to 4L 0.055 504.05
PSV-4 100ml to 22L 0.068 504.05
PSV-5 1L to 50L 0.12 504.05
PSV-5T >12L 0.37 1137.47
PSV-6 >20L 0.7 1137.47
PSV-7 >30L 1.3 1137.47
PSV-8 >40L 2.0 1137.47



Specifications:

Transducer
Diaphragm: Stainless Steel
Accuracy: DVR-1000 .1% // DPR-1100 .25% // DDR-1200 .25%
Proof Pressure: 200%

Controller
Regulation: 0.015% of range
Resolution: 0.1 torr or 0.01 psi
Vapor Path Materials: Stainless Steel and Teflon
Ramp Rates: 100 torr/sec to .1 torr/hr

Fittings 1/4″ SS compression fittings
Warranty:

  • Electronics: 2 years
  • Xducer and Valve: 6 months

Weight: 3lbs
Dimensions: 8″ x 3″ x 6″

5/5 (2 Reviews)

Regulation of both vacuum and positive pressures. Built with a dual range pressure transducer capable of accurately measuring pressures from full vacuum to the pressure limit of the transducer selected. The maximum pressure of the controller is user selectable. Contains an absolute pressure transducer.

SKU: ddr1200
This product is built to order and the price may vary. Request a price quote for more information.
