KEM-Pump Software

Included with each pump

Implements seven fluid delivery programs that automate virtually any reagent delivery or sampling application

KEM-Pump is open-source code written in VB.net; we invite users to customize or add features unique to their applications

KEM-Pump.dll allows you to build the pump system into robotics or other lab automation equipment

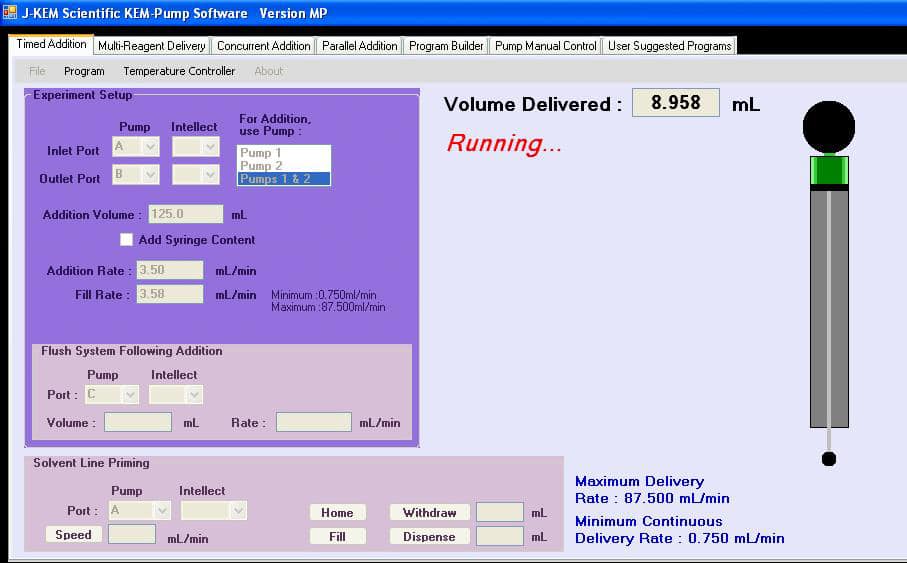

Program 1 – Timed addition

Continuous delivery of any volume at a user-entered flow rate

Program 2 – Sequential Addition

Simultaneously adds two reagents to a single reactor at independent rates and volumes

Twelve step addition program (dual pump system only)

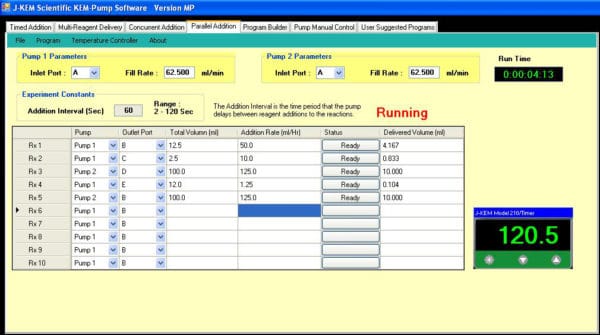

Program 3 – Parallel Addition

Adds a single reagent to multiple reactors (up to 7) in parallel with independent volume and flow rates

Program 4 – Concurrent Addition

Simultaneously adds two reagents to a single reactor at independent rates and volumes

Twelve step addition program (dual pump system only)

Program 5 – Program Builder

Drag-and-drop any sequence of pump commands to perform virtually any fluid delivery program

Includes I/O and temperature control methods

Remove control from PC or LabView

Program 6 – Manual Control

Allows manual control of the pump in a point-and-click interface

Program 7 – Autosampler

Aspirate samples at user set times to sample vials

Program 8 – Custom

J-KEM provides one custom program at no charge, written to accomplish YOUR unique task

J-KEM’s Technologies Work Together

Connect a J-KEM temperature controller to the PC running KEM-Pump, and the controller becomes part of the syringe pump program

Control additions based on time, temperature, pressure or pH
