Model Quad Four independent controllers

$3,132.00 – $3,825.50

Because we’ve never met a chemist with too much bench space!

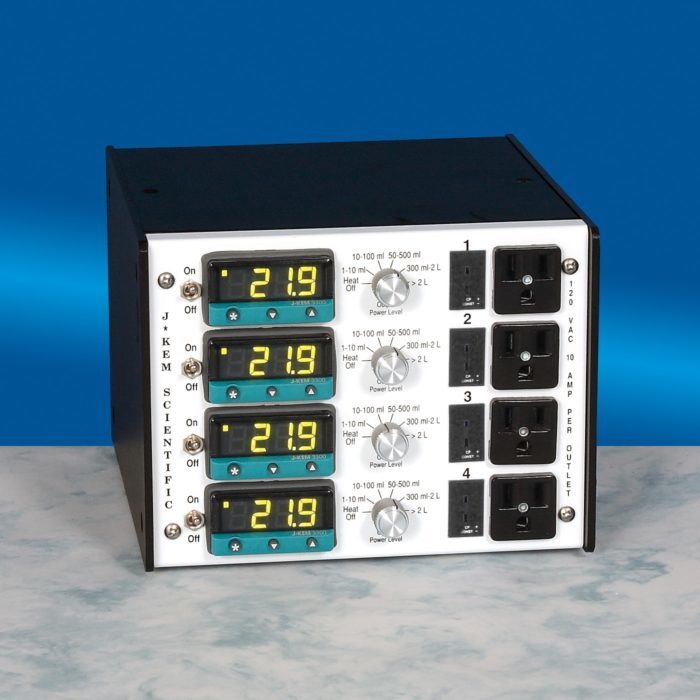

The Quad packs four independent temperature controllers into a single, compact unit. Each of the four controller channels has 1200 watts of power, an independent display, and an over-temperature protection circuit. Contains J-KEM’s patented power control computer which provides 0.1° regulation of anything.

Specifications: 120vac, 15 amps, 1800 watts total, 1200 watts maximum per channel.
Warranty: 2 Years

The temperature range desired determines the probe/thermocouple type:

J [black] (0 – 800° C)
K [yellow] (-50 – 1200° C)
T [blue]  (-200 – 250° C)
RTD: (-200 – 400° C)

PURCHASE WITH OR WITHOUT SYSTEM ACCESSORIES

Complete system includes: one controller, four Teflon thermocouples (12″ long, 1/8″ diameter), four connecting cords, and four 14/20 joint adapters.

System thermocouples are Teflon-coated and should not be used above 190° C

Need even more control? Add the KEM-I/O feature: an input/output option that allows your controller to operate external devices like valves and stirrers with digital inputs/outputs.

Inquire about NRTL approval.

Academic and volume discounts are available.
